Inverter Hide Away
Technical Focus
- Auto Fan Mode
- Random Auto Restart
- Dry Mode Function
- Weekly Timer
- 24-Hours On/Off Real Setting Timer
- Odour Wash
- Economy Mode
- Self-Diagnostic Function
- Selectable Thermo Sensor
Easy Installation
Thin (Only 29 cm*), Lightweight Design
The unit has a height of only 29cm, so it allows installayion in limited ceilling spaces. The lightweight, attractive design simplifies installation, and matches virtually all room interiors.
- Inverter: CS-T19KD2H5, CS-T24KD2H5
Flexible Installation
The powerful airflow enables a longer duct to be used. Since the air outlet can be installed away from the main unit, a variety of air conditioner layouts become possible.
Easy Maintenance and Cleaning
Maintenance works can be done from the underside of the indoor unit.
- The Sound Pressure Level of the outdoor unit shows the value measured of a position 1 meter infront of the main body and 1.5 meters from the ground.
- When installing the outdoor unit at a higher position than the indoor unit.
- Add 70mm for piping port.
.jpg)

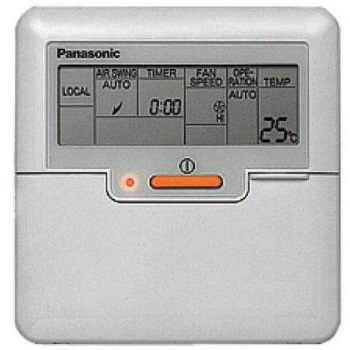

Wired Remote Controller
A remote controller is in the same package with the indoor unit.
Rating Conditions
Rating Conditions
| Coolling | |
| Inside air temperature | 27°C DB/19°C WB |
| Outside air temperature | 35°C DB/24°C WB |
| Inverter | ||||
| Capacity (HP) | 2.5HP | 3.0HP | 4.0Hp | 5.0HP |
| Indoor Model | CS-T19KD2H5 | CS-T24KD2H5 | CS-T34KD2H5 | CS-T43KD2H5 |
| Outdoor Model | CU-YT19KBH52 | CU-YT24KBH52 | CU-YT34KBH52 | CU-YT43KBH52 |
| Power Source (Ph/V/Hz) : | 1Ø Phase, 220-230-240V, 50Hz | |||
| Cooling Capacity (kW) : (Btu/hW) |
5.60 (2.00 - 6.30) 19, 100 (6, 820 - 25, 600) |
7.10 (2.00 - 7.50) 24, 200 (6, 820 - 25, 600) |
10.00 (3.80 - 10.50) 34, 100 (13, 000 - 35, 800) |
12.50 (3.80 - 13.00) 42, 600 (13, 000 - 44, 300) |
| Current (A) : | 8.8 - 8.5 - 8.3 | 12.0 - 11.6 - 11.2 | 17.3 - 16.7 - 16.1 | 20.9 - 20.3 - 19.6 |
| Power Input (kW) : | 2.15/2.15 | 2.78/2.90 | 4.20/4.30 | 2.78/2.90 |
| EER (W/W) : (Btu/hW) : |
3.01 10.27 |
2.81 9.57 |
2.74 9.34 |
2.83 9.64 |
| External Static Pressure (Pa(mmAq)) : | 69 (7) | 98 (10) | ||
| Indoor Model | ||||
| Air Volume (m³/min) : | 22.0 | 35.0 | ||
| Sound pressure level (Hi/Lo (dB(A))) : | 45/41 | 49/45 | ||
| Sound pressure level (Hi/Lo (dB)) : | 62/58 | 64/60 | ||
| Dimensions (mm) : | 290 x 1000+100 x 500 | 360 x 1000+100 x 650 | ||
| Net weight (kg) : | 35.0 | 48.0 | ||
| Outdoor Model | ||||
| Sound pressure level (Hi/Lo (dB(A))) : | 49 | 50 | 53 | 54 |
| Sound pressure level (Hi/Lo (dB(A))) : | 67 | 68 | 71 | 72 |
| Dimensions (mm) : | 795 x 875+70 x 320 | 795 x 900 x 320 | 1170 x 900 x 320 | |
| Net weight (kg) : | 65.0 | 66.0 | 94.0 | |
| Piping Connections Gas Pipe (mm (inch)): Liquid Pipe (mm (inch)): |
15.88 (5/8) 9.52 (3/8) |
|||
| Pipe Length (Min-Max (m)) : | 7.5 - 30.0 | 7.5 - 50.0 | ||
| Elevation Difference (CU up)**CU down (m) : | (25.0) 20.0 | (30.0) 20.0 | ||
| Additional Gas (g/m) : | - | 50 | ||
| Operating Range, Outdoor (Min-Max (°C)) : | 16 - 43 | |||
